In the world of modern manufacturing, speed, precision, and cost-effectiveness are crucial factors. Two processes that play an essential role in today’s industries are 5 axis machining and insert molding. Businesses often search for an online 5 axis machining quote to quickly compare prices, timelines, and capabilities of different service providers. At the same time, manufacturers who deal with plastics and composites are deeply interested in the insert molding process steps, as this method helps integrate multiple components into one efficient, durable product.
This article explores both concepts in detail to give businesses and engineers a clear understanding of how to utilize them effectively.
Understanding 5 Axis Machining

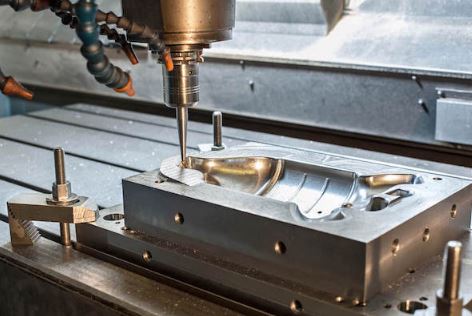

5 axis machining is one of the most advanced manufacturing techniques available today. Unlike traditional 3 axis CNC machines that move in the X, Y, and Z directions, 5 axis machines allow two additional rotational movements. This flexibility enables complex shapes, intricate surfaces, and precise details to be created without the need for multiple setups.
Industries such as aerospace, automotive, and medical devices often rely on 5 axis machining to produce high-precision parts.
Benefits of Requesting an Online 5 Axis Machining Quote
Getting an online 5 axis machining quote has become a standard practice for businesses. Instead of spending time calling multiple suppliers, online quoting platforms provide instant estimates.
Key Advantages:
- Time-Saving – Within minutes, you can compare costs from different providers.
- Transparency – An online system breaks down costs including material, machining time, and finishing.
- Customization – Users can upload CAD files directly and receive a tailored quote.
- Global Reach – Companies can get quotes not only from local suppliers but also from international manufacturers.
By requesting an online 5 axis machining quote, engineers and procurement specialists can make smarter, data-driven decisions while optimizing production budgets.
How to Get an Accurate Online 5 Axis Machining Quote
To ensure accuracy, businesses should follow these best practices when requesting quotes:
- Upload Clear CAD Designs – Ensure files are in formats like STEP or IGES.
- Specify Materials – Aluminum, titanium, and stainless steel have different machining requirements.
- Define Tolerances – High precision requires more machining time and can affect pricing.
- Select Finishing Options – Anodizing, polishing, or coating may be necessary depending on the industry.
- Provide Quantities – Costs differ significantly for prototypes versus mass production.
A well-prepared request reduces delays and ensures the received quote reflects true production costs.
Introduction to Insert Molding
Insert molding is a manufacturing technique that combines metal or plastic inserts with injection-molded plastics to form a single component. It is widely used for creating products like electrical connectors, medical devices, automotive parts, and consumer electronics.
The insert molding process steps are crucial to understand because they define the quality, durability, and consistency of the final product.
Insert Molding Process Steps
To ensure strong adhesion between inserts and plastic, manufacturers follow a detailed sequence.
Step 1 Preparing the Inserts
The inserts, which are often metal components, must be cleaned and treated to remove any dirt, oil, or oxidation. A clean surface ensures proper bonding with the plastic resin.
Step 2 Placing the Inserts in the Mold
Operators or robotic arms place the inserts into designated cavities within the mold. Precise positioning is critical to avoid misalignment during injection.
Step 3 Injection of Plastic Resin
The mold is closed, and molten plastic resin is injected at high pressure. The resin flows around the insert, encapsulating it fully and creating a strong bond.
Step 4 Cooling and Solidification
The resin cools and hardens around the insert. Proper cooling times are maintained to prevent defects like warping or shrinkage.
Step 5 Ejecting the Finished Part
Once cooled, the mold opens, and the completed part is ejected. At this point, the insert and plastic have fused into one solid component.
Step 6 Post-Processing and Quality Checks
The final step includes trimming excess material, surface finishing, and performing inspections. Quality checks may involve dimensional measurements, adhesion strength tests, and visual inspections.
Advantages of Insert Molding
Following the correct insert molding process steps delivers several benefits:
- Durability – Strong bonds between inserts and plastic increase product life.
- Cost Efficiency – Reduces assembly steps by integrating multiple components at once.
- Design Flexibility – Allows complex part geometries that combine strength and lightweight features.
- Compactness – Essential for industries like electronics where space-saving designs are needed.
Comparing Online 5 Axis Machining and Insert Molding
While both techniques serve different purposes, they complement each other in many manufacturing projects. For example, a company may use 5 axis machining to create precision metal inserts, and then apply insert molding process steps to integrate them with plastic housings. Together, they provide an efficient path from design to final production.
Industries That Benefit Most
- Aerospace – Lightweight, precise metal parts combined with molded housings.
- Medical Devices – Stainless steel inserts molded with biocompatible plastics.
- Automotive – Engine components requiring metal strength and plastic flexibility.
- Consumer Electronics – Connectors, housings, and compact durable components.
Conclusion
Both online 5 axis machining quotes and insert molding process steps are essential for modern manufacturing. Online quoting tools streamline sourcing decisions for machining services, while a clear understanding of insert molding steps ensures high-quality, durable parts. By leveraging these advanced methods, companies can improve efficiency, reduce costs, and deliver innovative products to market faster.
